Create and Manage Slot Templates
Slot templates define the connection path supplied to jigsaw generation. Built-in templates are protected; custom templates can be created, updated, exported, persisted, and deleted.
Choose a template

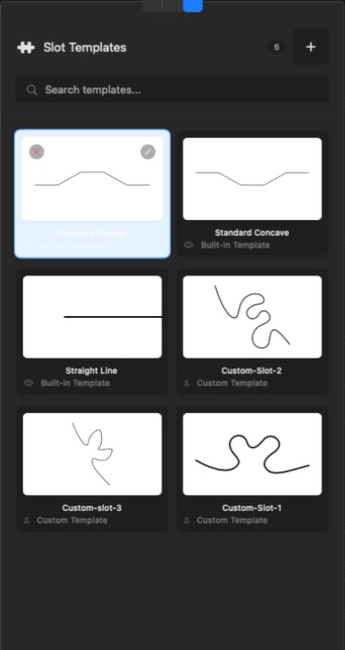

Open the Templates panel and select Standard Convex, Standard Concave, Straight Line, or one of your custom templates before generation.
Create a template

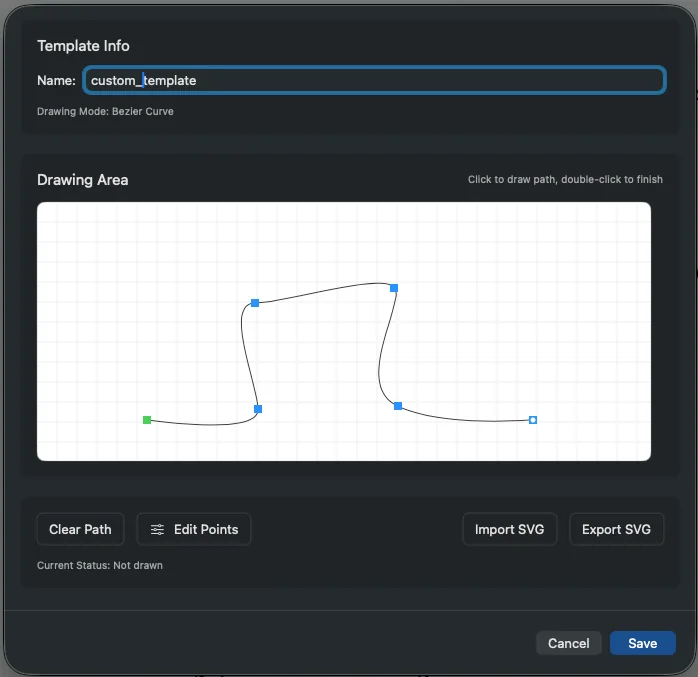

Create custom templates by clicking the + button
Search by name
Search templates by name
Built-in Templates
Pre-designed slot shapes provided by JigsawDesigner. Includes classic convex/concave jigsaw tabs.
Custom Templates
Design custom slot shapes with the Bezier drawing tools.
Select and check the result
Select a template to use it for jigsaw generation
Built-in templates cannot be overwritten or deleted. A highlighted template does not mean every generated edge uses that one shape; inspect the result with your chosen contour and parameters.
iPhone
Find a connection style in the template library

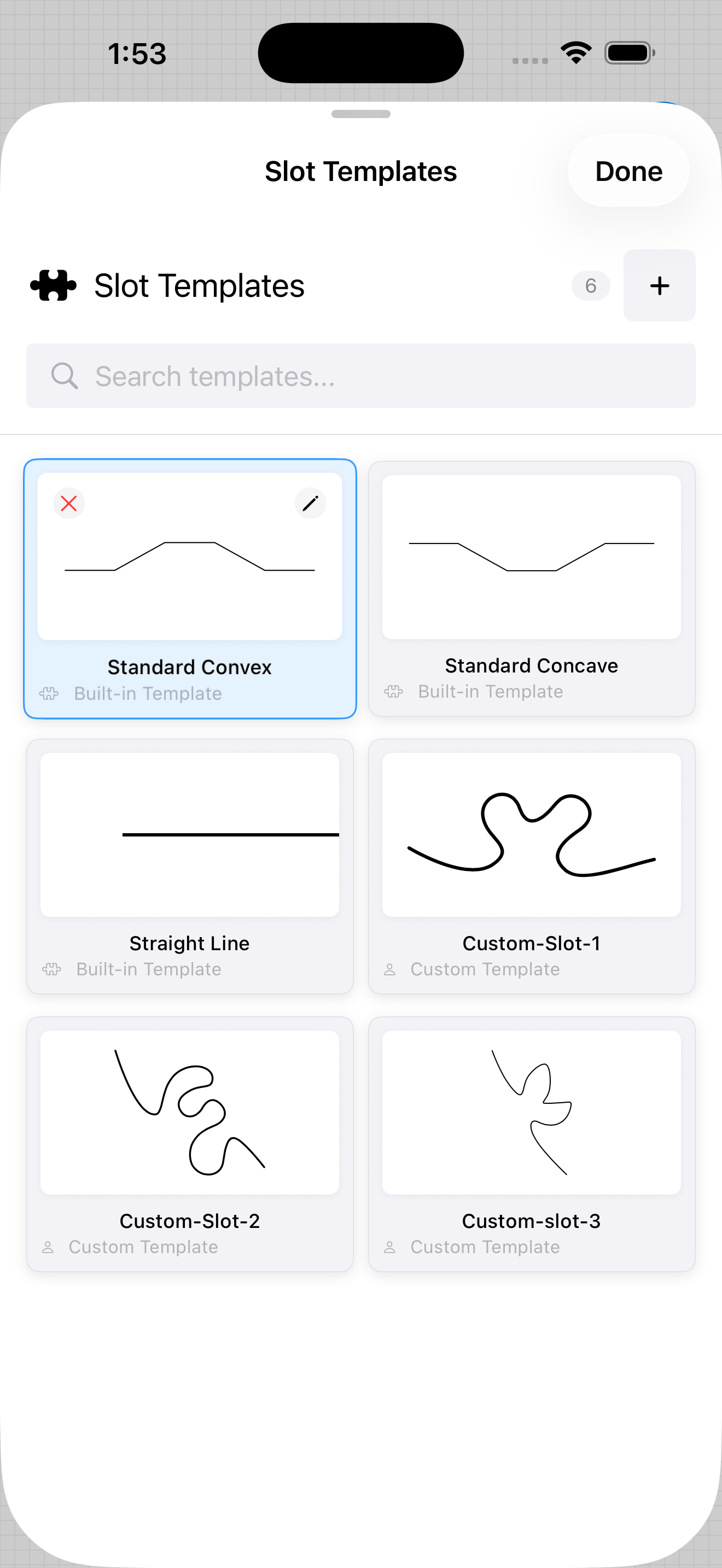

Slot templates define the curve along a connection. Explore the library, then create a version of your own.
Create a template
Click + in Templates and enter a name. Save becomes available when the template has a name and a valid path.
Search by name
Search templates by name
Select and check the result
Built-in templates cannot be overwritten or deleted. A highlighted template does not mean every generated edge uses that one shape; inspect the result with your chosen contour and parameters.
Create your own slot template in four steps
Follow the same Website Demo Wave example from an empty editor to a saved custom template.
- 1
Create and name

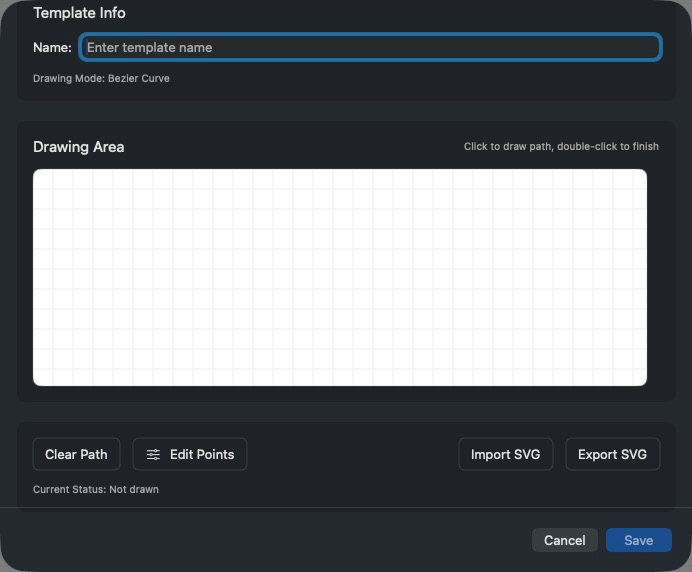

Click + in Templates and enter a name. Save becomes available when the template has a name and a valid path.
- 2

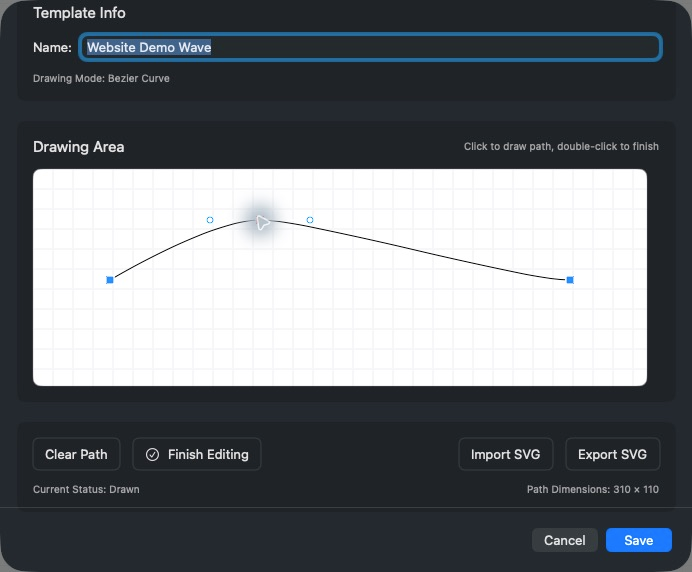

Draw and refine the curve
Draw an open Bézier curve, then choose Edit Points. Move anchors to position the path and drag the hollow handles to shape its bends.
- 3
Finish editing and save

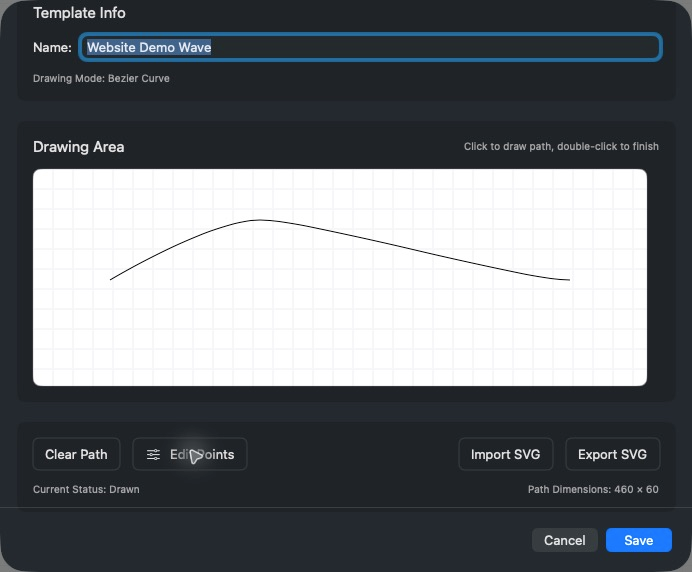

Choose Finish Editing, inspect the curve, then Save. Path Dimensions describes the curve's bounding box, not the size of a finished puzzle piece.
- 4
Find your saved template
Back in Templates, search for Website Demo. The matching custom template card confirms it is saved. Select it and try it on a simple closed contour.
Import SVG can provide a starting path. The template editor reads the first supported path, so prepare an SVG containing the curve you want to use.
iPhone
Create your own slot template in four steps
Follow iPhone Demo Tab from the template library through drawing and point editing to the saved template.
1Create a template
Click + in Templates and enter a name. Save becomes available when the template has a name and a valid path.
2Name and draw the path

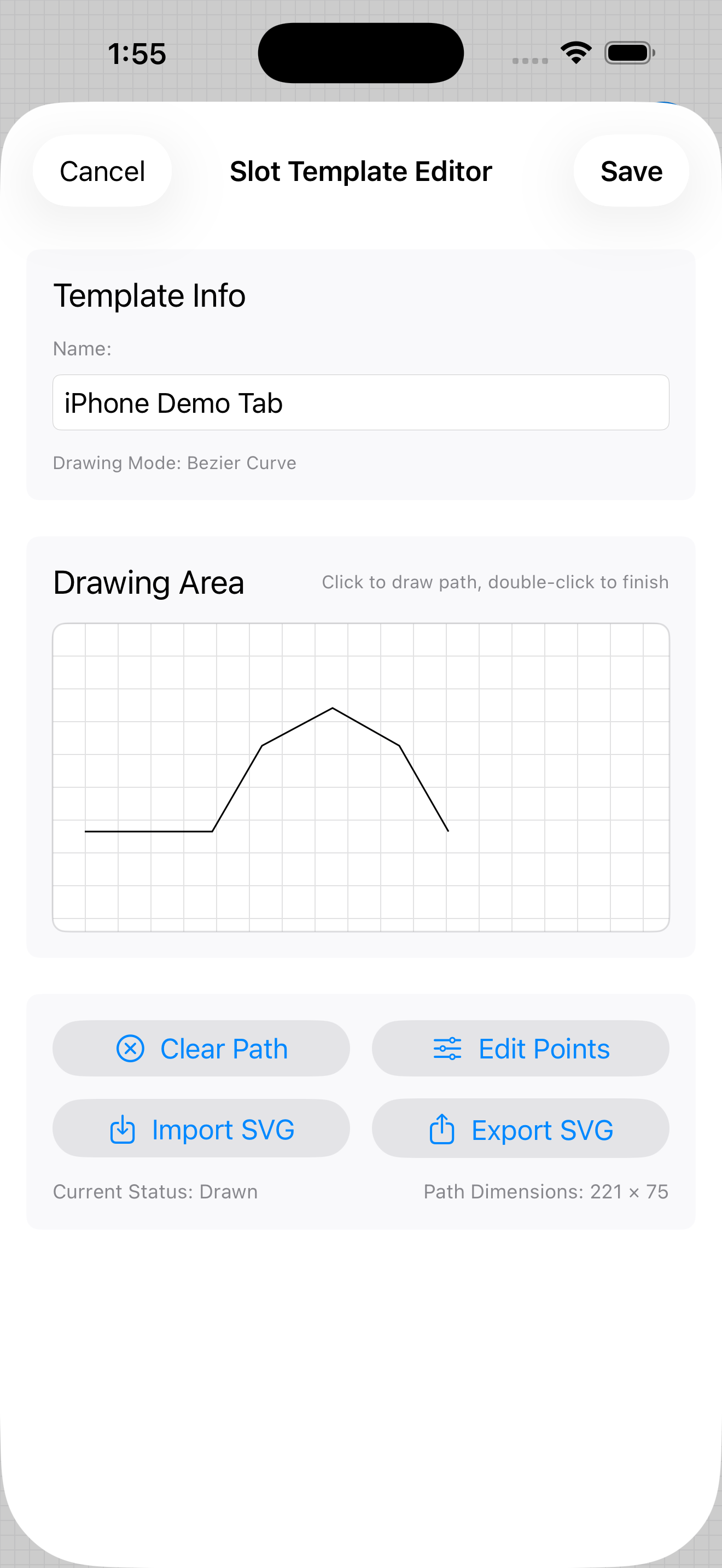

Tap + in Slot Templates and enter iPhone Demo Tab. Tap successive points in the drawing area to create an open path; double-tap to finish.
3Finish editing and save

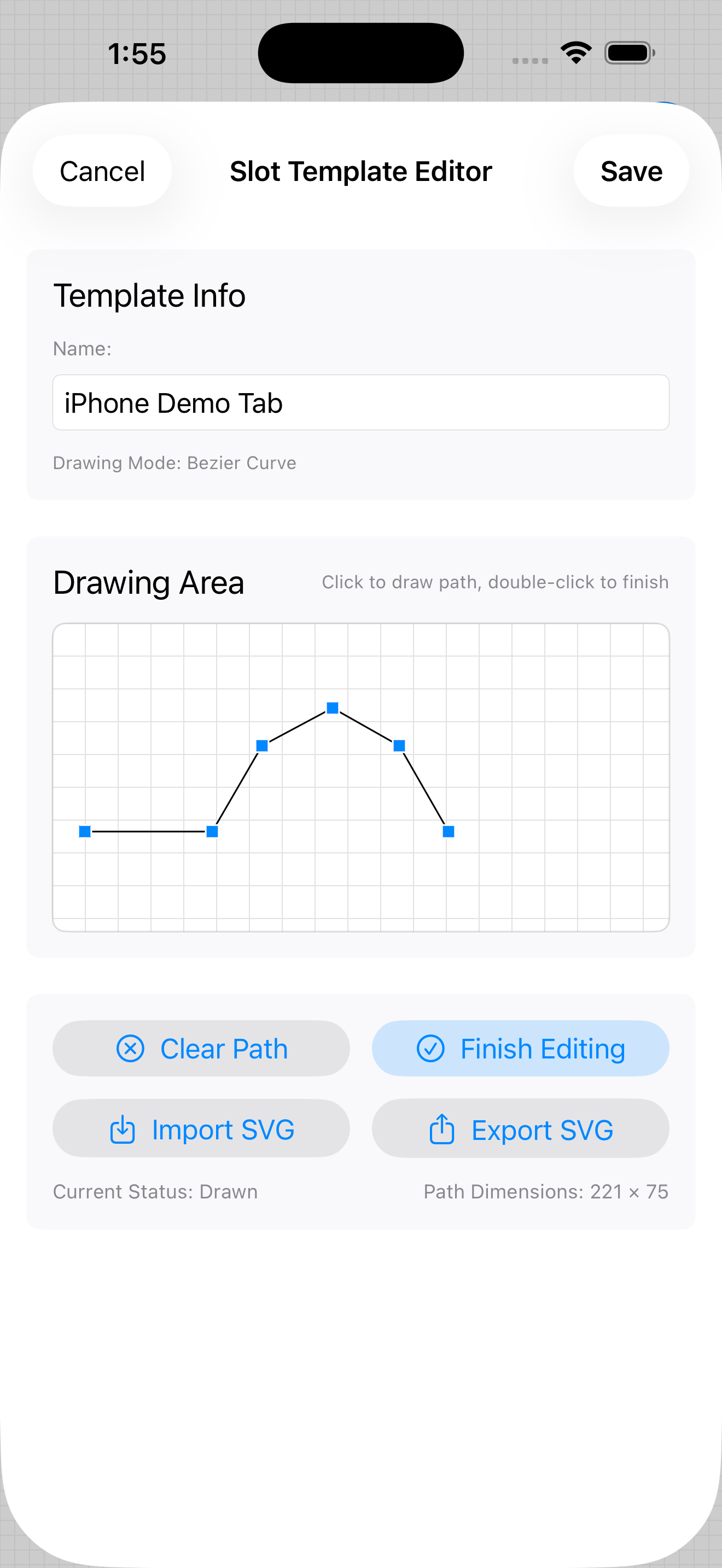

Tap Edit Points to reveal the six anchors in this example. Finish Editing returns to drawing mode; Save keeps the named template.
4Find your saved template

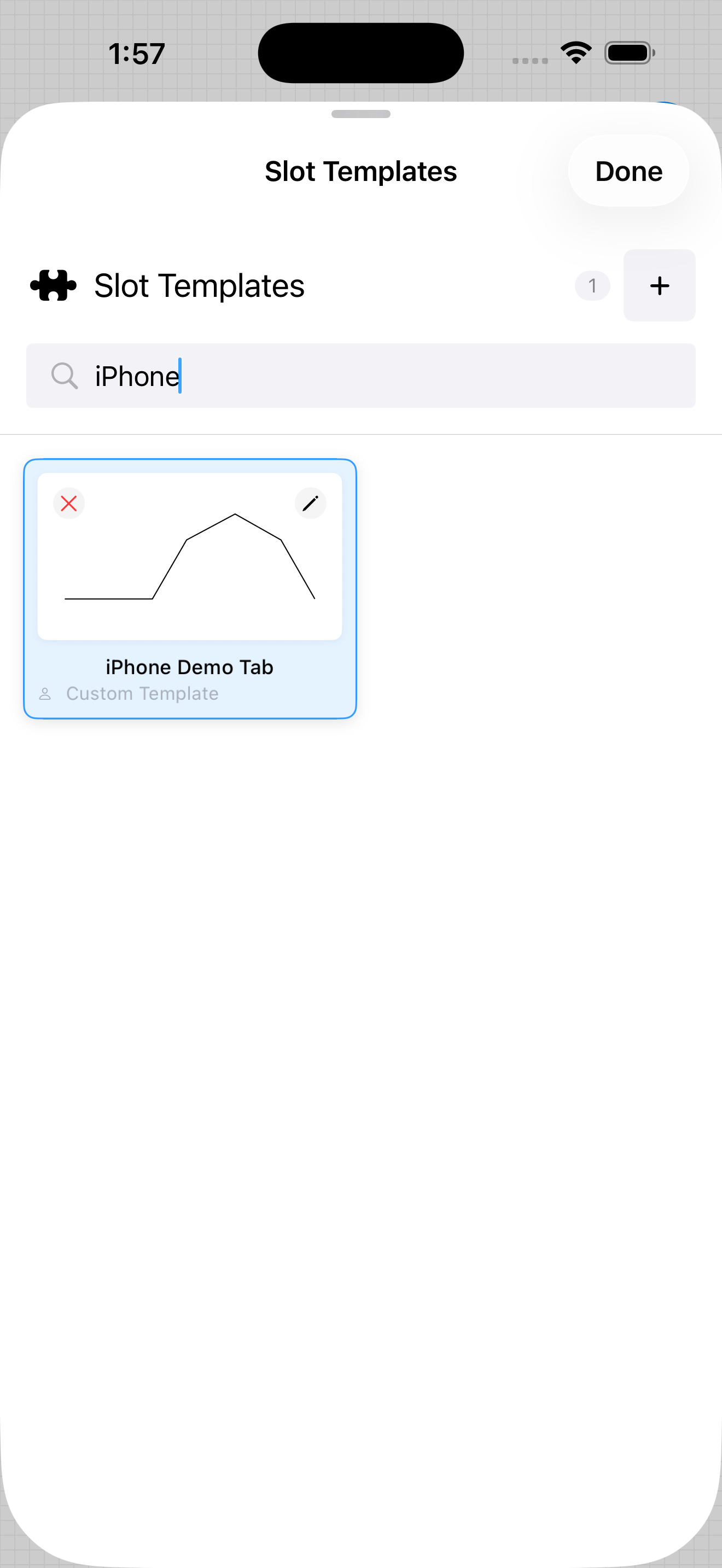

Search for iPhone in the library, then tap iPhone Demo Tab to select the saved template. The example is an open polyline; its dimensions describe the path, not a finished puzzle piece.
Import SVG can provide a starting path. The template editor reads the first supported path, so prepare an SVG containing the curve you want to use.
Persist, export, and delete custom templates
Saving a custom template adds it to persistent template storage so it can be available to new projects. Export SVG for a portable copy. Built-in templates cannot be edited or deleted, while custom templates can.
